High Precision
TATSUNO
TATSUNO
Precision Fuel Measurement for Accurate Dispensing Systems
- High-precision measurement with ±0.2% accuracy
- Genuine Tatsuno brand - Japanese engineering excellence
- Positive displacement design for consistent readings
- Durable construction with corrosion-resistant materials
- Compatible with all standard fuels and additives
- Easy integration with existing fuel dispensing systems
High Accuracy
±0.2% precision for reliable fuel measurement
Genuine Tatsuno
Authentic Japanese engineering quality
Positive Displacement
Consistent readings across flow rates
Durable Design
Built for long-term industrial use
Product Description

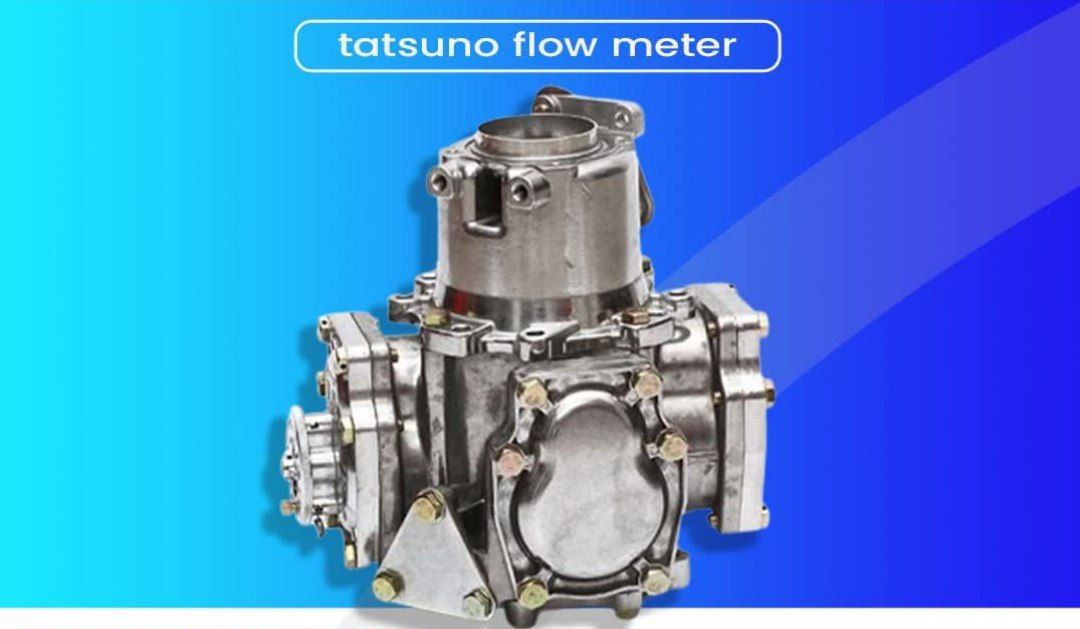

The Tatsuno Flow Meter is a precision measurement device designed for accurate fuel dispensing applications. Engineered with Japanese precision and reliability, this flow meter ensures exact fuel measurement for commercial and industrial fueling operations.
Key Features
- High Precision Measurement: ±0.2% accuracy for reliable fuel accounting
- Genuine Tatsuno Quality: Manufactured to exacting Japanese standards
- Positive Displacement Technology: Measures actual fuel volume for consistent accuracy
- Durable Construction: Corrosion-resistant materials for long service life
- Wide Compatibility: Suitable for all standard petroleum products
- Easy Installation: Standard connections for simple integration
- Low Maintenance: Designed for minimal service requirements
Measurement Principle
This positive displacement flow meter measures fuel by dividing it into specific volume increments and counting these increments. This mechanical measurement method provides excellent accuracy and repeatability across varying flow rates and fuel viscosities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | TATSUNO (Genuine/OEM) |
| Accuracy Class | ±0.2% (Class 0.2 per OIML R117) |
| Maximum Flow Rate | 150 LPM (liters per minute) |
| Minimum Flow Rate | 5 LPM |
| Working Pressure | 10 BAR (145 PSI) maximum |
| Pressure Loss | < 0.3 BAR at maximum flow |
| Connection Size | 1" NPT standard (other sizes available) |
| Body Material | Cast aluminum with corrosion-resistant coating |
| Measuring Chamber | Precision-machined aluminum or composite |
| Rotors | High-precision engineered plastic or metal |
| Shaft Seals | Double mechanical seals with leak detection |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Viscosity Range | 0.5-10 cSt (covers all petroleum fuels) |
| Pulse Output | Standard 2-wire (pulse per unit volume) |
| Weight | Approximately 5.5 kg (12.1 lbs) |
Performance Characteristics
- Excellent repeatability (±0.05%)
- Low pressure drop for energy efficiency
- Minimal temperature sensitivity
- Long calibration intervals (typically 2-3 years)
- Bi-directional flow capability
- Self-draining design for easy maintenance
Applications & Compatible Systems
The Tatsuno Flow Meter is designed for precise fuel measurement in various commercial and industrial applications:
Primary Applications
- Fuel Station Dispensers: Accurate measurement for retail fuel sales
- Fleet Management Systems: Precise fueling data for vehicle fleets
- Bulk Fuel Transfer: Measurement during tank-to-tank transfers
- Industrial Fuel Systems: Monitoring fuel consumption in manufacturing
- Marine Fueling: Accurate measurement for boat and ship refueling
- Aviation Fueling: Ground support equipment for aircraft fueling
- Fuel Management Software: Integration with automated systems
Compatible Fuel Types
- Gasoline (all octane ratings)
- Diesel fuel (including ultra-low sulfur diesel)
- Bio-diesel blends (B5, B10, B20, B100)
- Kerosene and jet fuel
- Heating oil and fuel oil
- Ethanol blends (E10, E15, E85)
- Additive-treated fuels
System Integration
Compatible with:
- Tatsuno fuel dispensing systems (all models)
- Other major fuel dispenser brands
- Electronic counters and controllers
- Fuel management software systems
- Automated tank gauging systems
Request Pricing & Information
Contact Delta Petroleum today for competitive pricing on genuine Tatsuno flow meters. Our technical team can help you select the right meter for your specific application.
Quick Contact Options
Phone: +252 63 634 0006
Email: Deltapetroleum21@gmail.com
WhatsApp: Click to chat on WhatsApp
Technical specifications and calibration certificates available
